1
Parameters of Fan-shaped Duckbill Nozzle
| Product name | Adjustable Street Flush Fan Spray Nozzle |
| Size | 240*145*145 |
| Outlet width | 180/117 |
| Water outlet gap | 1.6/2 |
| Net weight | 3.5/2.7KG |
| Functional features | Adjustable water outlet angle manually 360° |
| Flow range | 0-22.8㎡/h /0-25.7㎡/h |
| Fan width | 4m/3.3m |
| Fan width | 4m/3.3m |
| Connection port size | 2-inch internal thread |
2
Mounting Location & Practical Functions of Fan-shaped Duckbill Nozzle

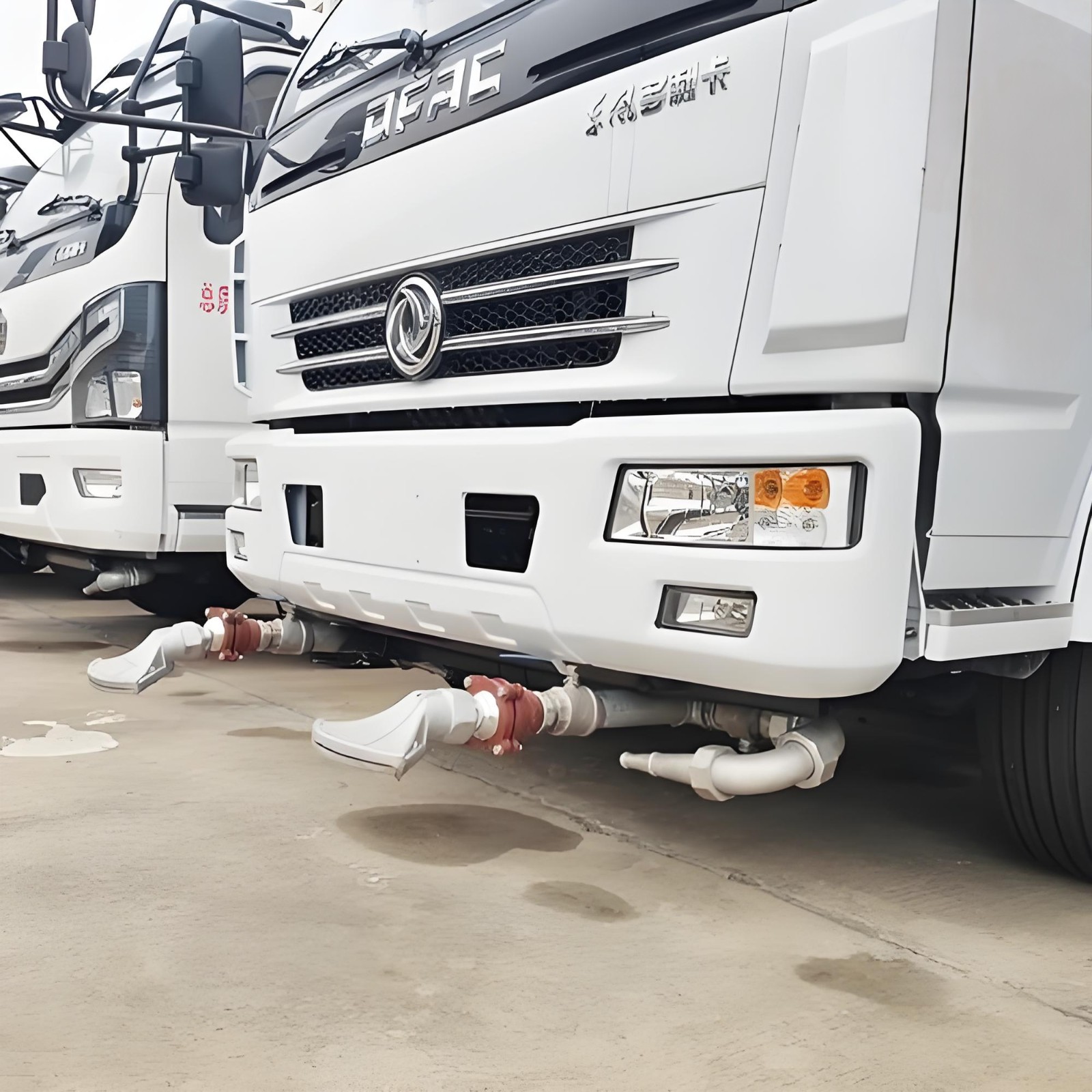

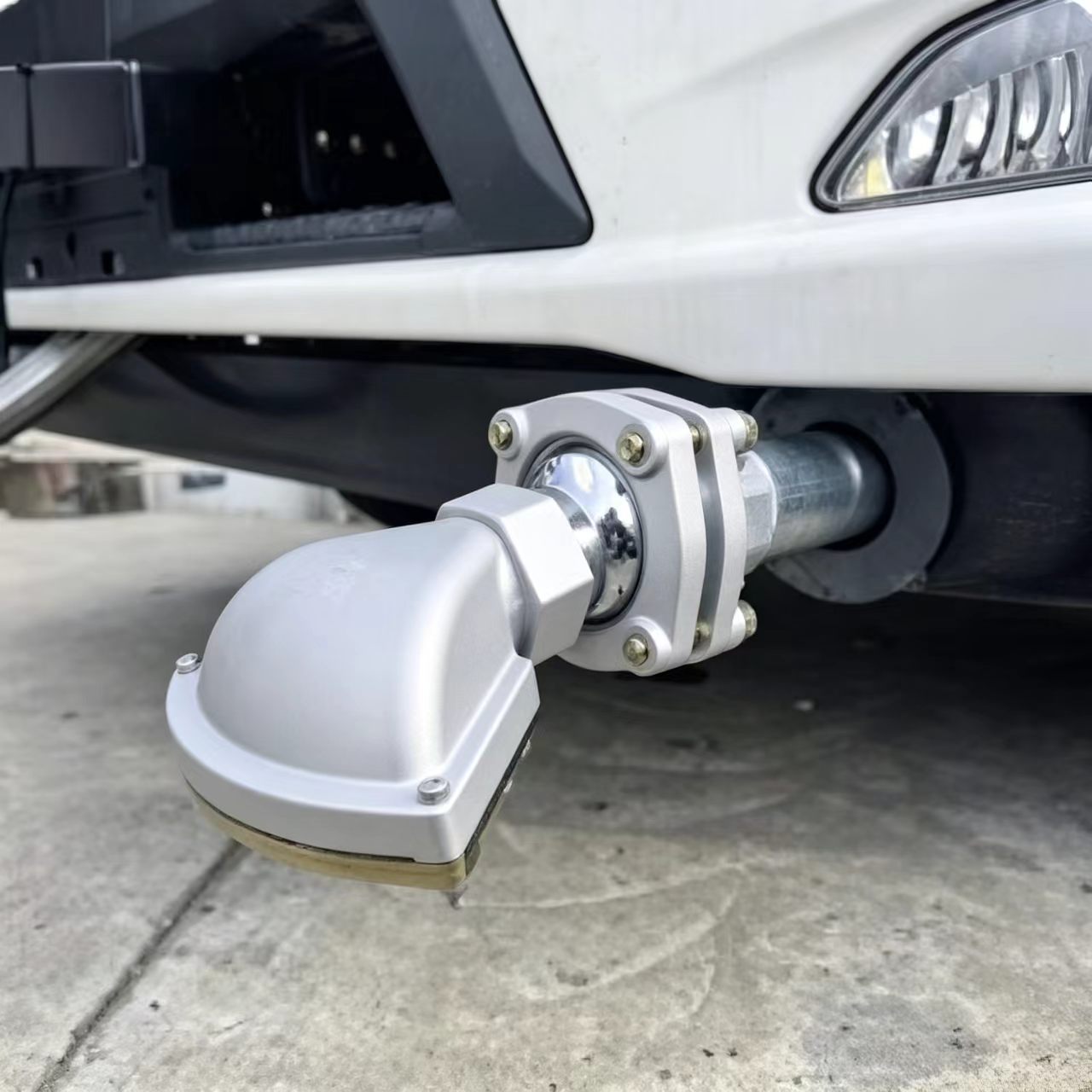

The Fan-shaped Duckbill Nozzle is a dedicated replacement Nozzle designed exclusively for all types of sanitation sprinkler trucks, and this Duckbill Nozzle is professionally installed on the front water pipeline under the front bumper of sprinkler trucks. The Fan-shaped Duckbill Nozzle matches the factory water pipe perfectly, so you can mount this Duckbill Nozzle directly on the front spray arm without extra conversion fittings for the Nozzle.
The core rotating ball joint built into every Fan-shaped Duckbill Nozzle enables full 360-degree manual rotation, which lets drivers freely shift the spray angle of the Duckbill Nozzle up, down, left and right according to road conditions.
3
Full Specifications & Structural Details of Fan-shaped Duckbill Nozzle
Overall Size & Net Weight of Fan-shaped Duckbill Nozzle
The overall outer dimension of every Fan-shaped Duckbill Nozzle is 240145145mm. We provide two weight options for this Duckbill Nozzle: 3.5KG and 2.7KG. Clients can select the matching Nozzle weight based on the load limit of their light or heavy sprinkler trucks.
Standard Connection Port of Fan-shaped Duckbill Nozzle.
Each Duckbill Nozzle is equipped with a unified 2-inch internal thread interface. This universal connector allows the Fan-shaped Duckbill Nozzle to replace old, damaged Nozzles on sprinkler trucks in minutes; no customized pipe adapters are needed for this Duckbill Nozzle.
Material & Assembly Craft of Fan-shaped Duckbill Nozzle.

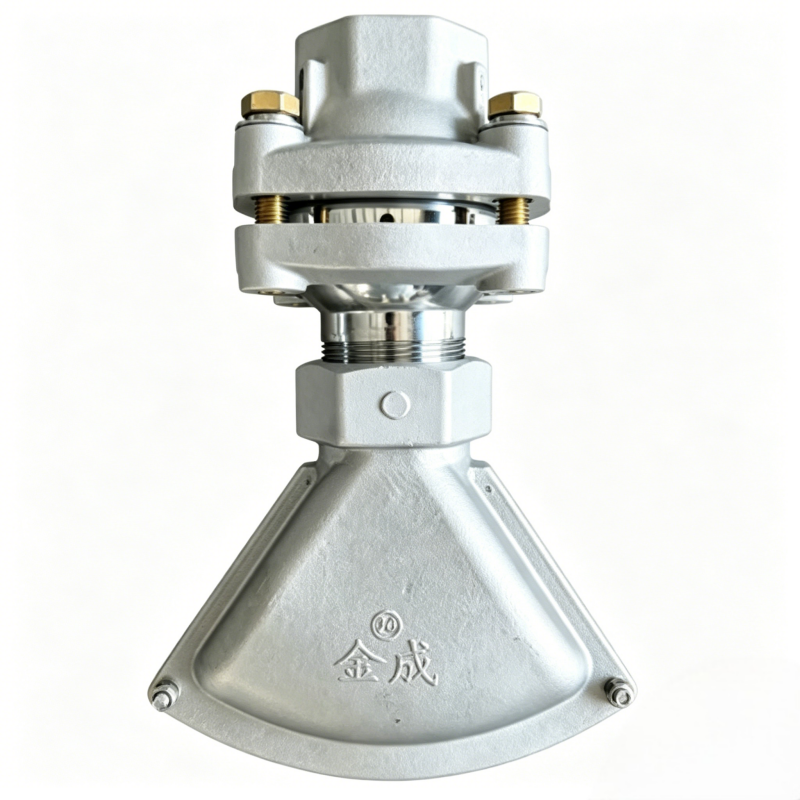

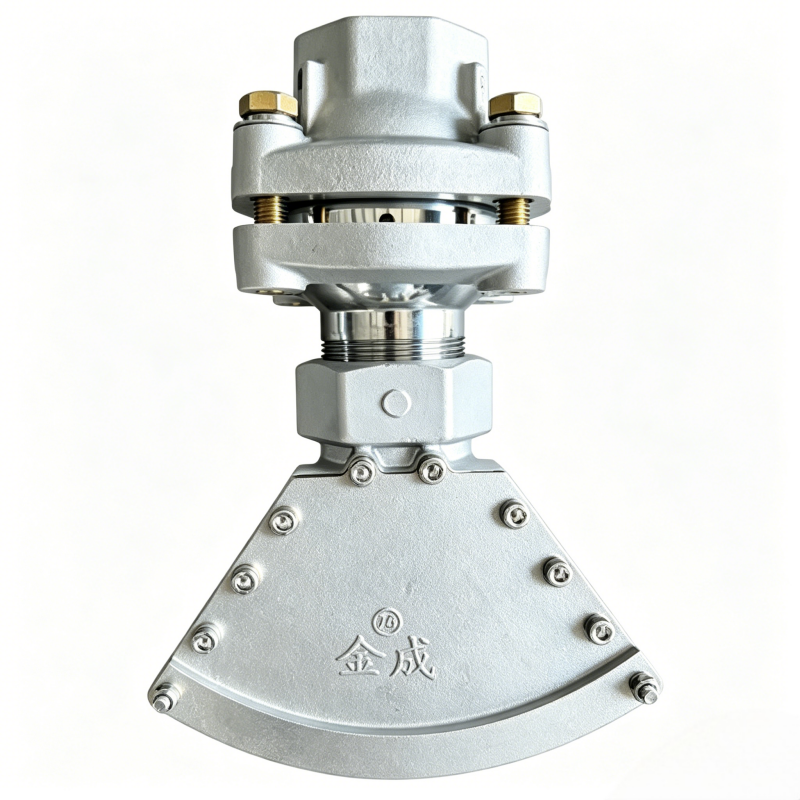

The main shell of the Duckbill Nozzle is integrally cast aluminum alloy with engraved brand marks, making the Fan-shaped Duckbill Nozzle solid and rust-proof. The rotary ball joint of this Nozzle adopts thickened sealing gaskets to stop water leakage.
Spraying Performance Data of Fan-shaped Duckbill Nozzle
This Duckbill Nozzle comes with two sets of spray configurations:
Outlet width options of the Fan-shaped Duckbill Nozzle: 180mm & 117mm
Water outlet gap of the Duckbill Nozzle: 1.6mm & 2mm
Corresponding flow range of each Nozzle: 0-22.8m³/h & 0-25.7m³/h
Matching fan spray width of the Fan-shaped Duckbill Nozzle: 4m & 3.3 m. All spraying parameters of the Duckbill Nozzle are calibrated for long-hour continuous road washing work, ensuring stable water output of the Nozzle.
4
Core Product Advantages of Fan-shaped Duckbill Nozzle
Fan-shaped Duckbill Nozzle
Fan-shaped Duckbill Nozzle

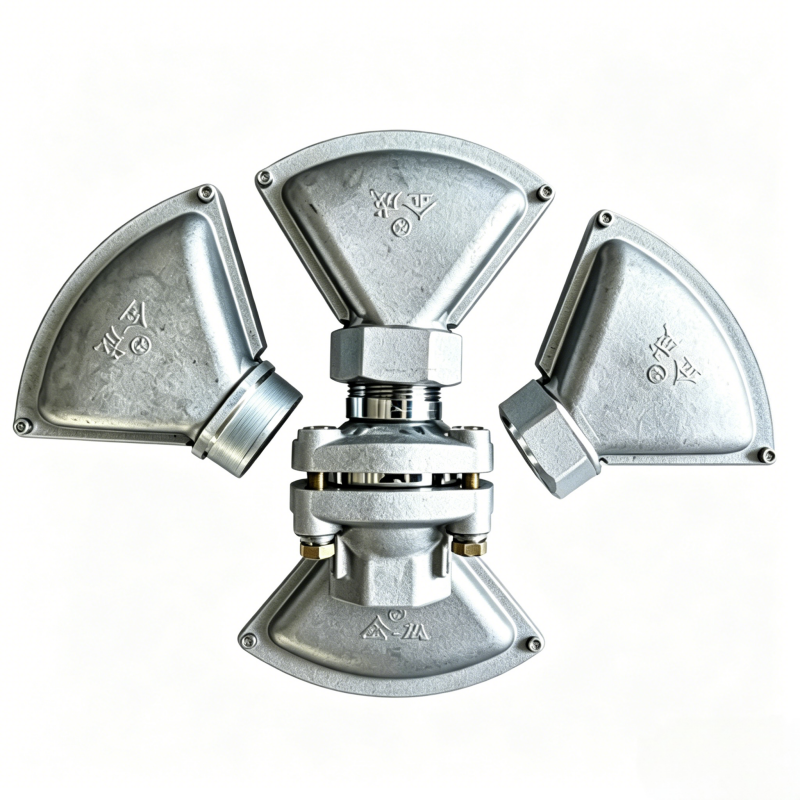

360° Full Angle Adjustable Rotary Design of Fan-shaped Duckbill Nozzle
The built-in spherical joint of the Duckbill Nozzle supports complete 360-degree manual adjustment without extra tools. Operators can tweak the spray angle of the Fan-shaped Duckbill Nozzle flexibly, so this Nozzle can handle flat city roads, high concrete curbs and narrow sidewalks without creating any cleaning dead zones. This adjustable structure makes the Duckbill Nozzle far more versatile than a fixed-angle ordinary Nozzle.
High-efficiency Wide Fan Water Curtain from Fan-shaped Duckbill Nozzle
Unlike small circular nozzles that only produce narrow water streams, the unique duckbill-shaped outlet of the Fan-shaped Duckbill Nozzle generates a continuous, wide, flat water curtain. A single Duckbill Nozzle can cover much larger road space per driving minute. Sprinkler trucks equipped with our Fan-shaped Duckbill Nozzle can finish road washing faster and cut down water consumption compared with vehicles using a cheap standard Nozzle.
5
About Us
Haigong (Hubei) Import and Export Co., Ltd. specializes in sprinkler truck spare parts like Fan-shaped Duckbill Nozzle, Duckbill Nozzle and various Nozzles. With over 15 years of R&D & export experience, we develop, produce and sell reliable Nozzles, supplying qualified Fan-shaped Duckbill Nozzles and Duckbill Nozzles for global sanitation clients.
We hold multiple patents and international certificates for our Fan-shaped Duckbill Nozzle and Duckbill Nozzle. All specs of our Nozzle pass standard tests, the patented design guarantees stable quality of every Fan-shaped Duckbill Nozzle and Duckbill Nozzle for global market entry.
Our automated factory owns CNC and robotic welding lines for integrated production of Fan-shaped Duckbill Nozzle and Duckbill Nozzle. Full in-house processing strictly controls Nozzle quality, supporting bulk & customized orders of Fan-shaped Duckbill Nozzle and matching Duckbill Nozzle.
Our service network covers Africa, Europe, the Americas and Southeast Asia for Fan-shaped Duckbill Nozzle, Duckbill Nozzle and all Nozzle buyers. Localized partners deliver quick installation guidance and after-sales maintenance for clients using our Fan-shaped Duckbill Nozzle & Duckbill Nozzle.
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance.
EXW, FOB, CFR, CIF, DAF, DDU.
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order.
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us!
Yes, we have 100% test before delivery.
We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and technical support to quide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
