1

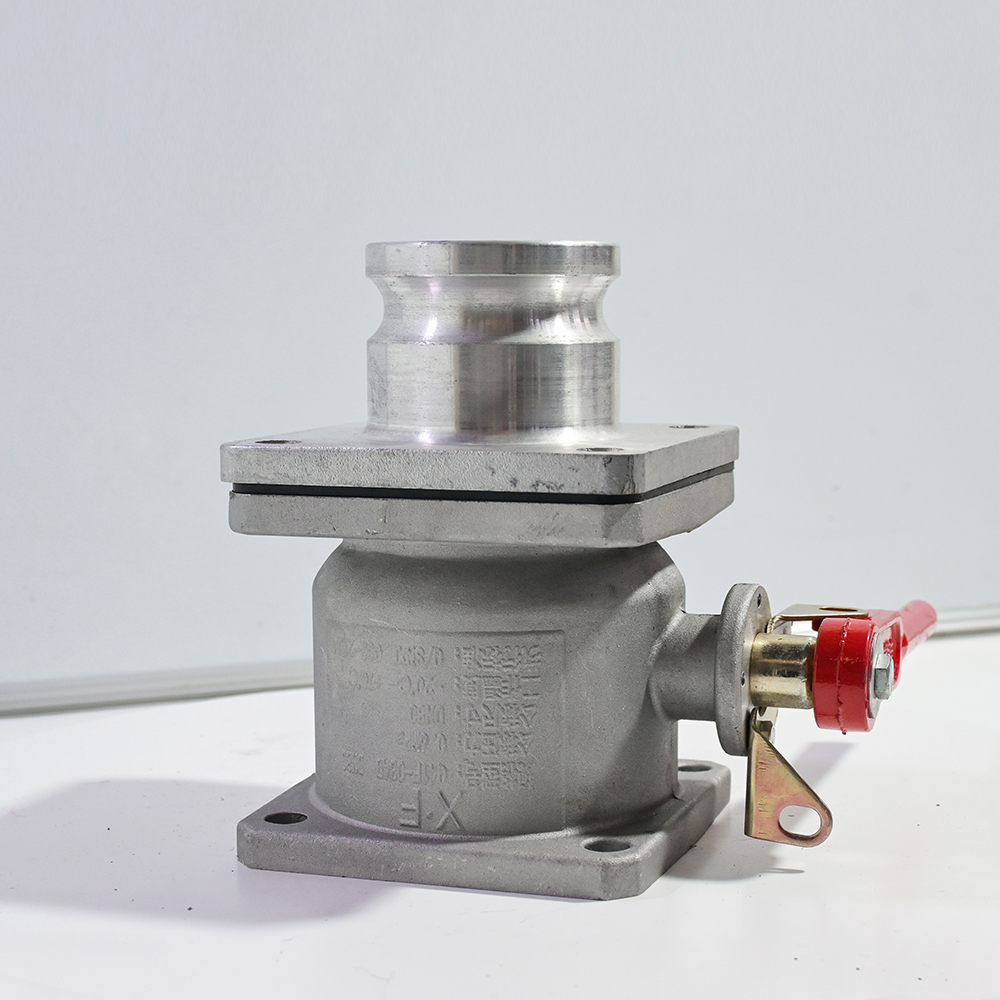

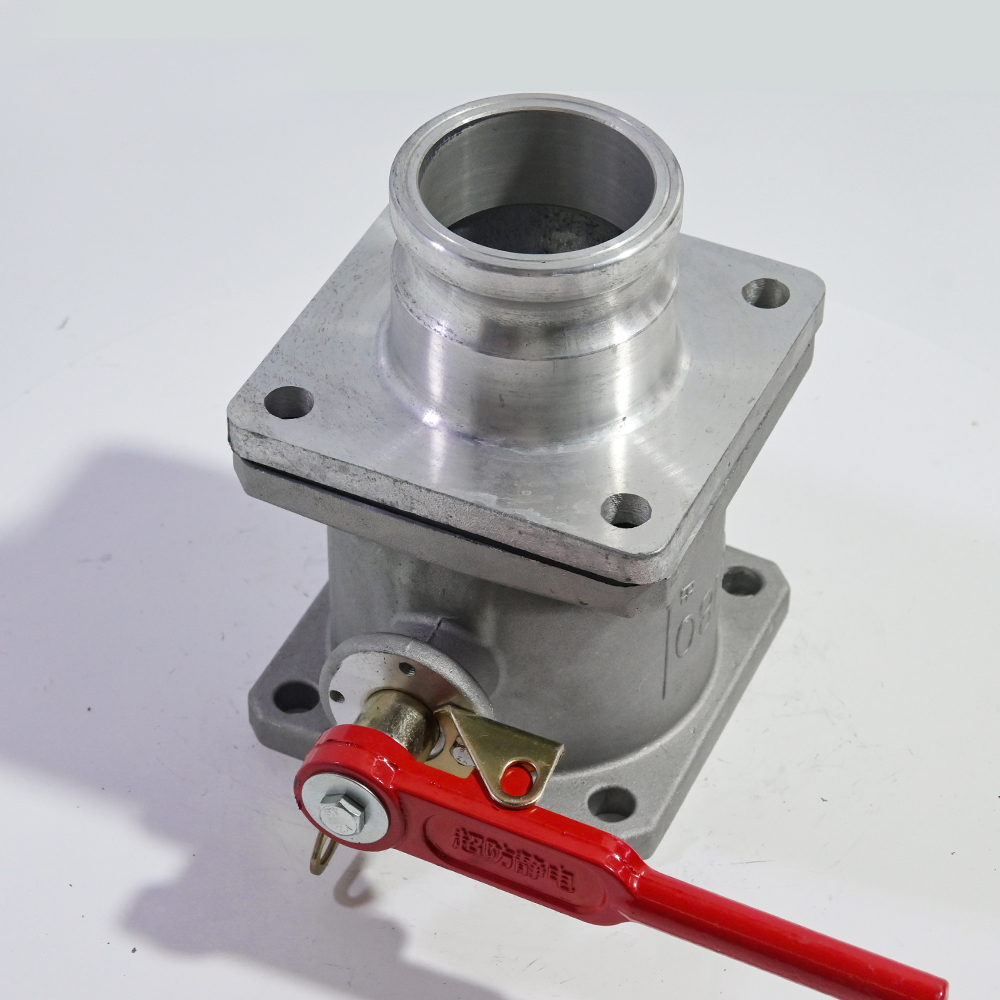

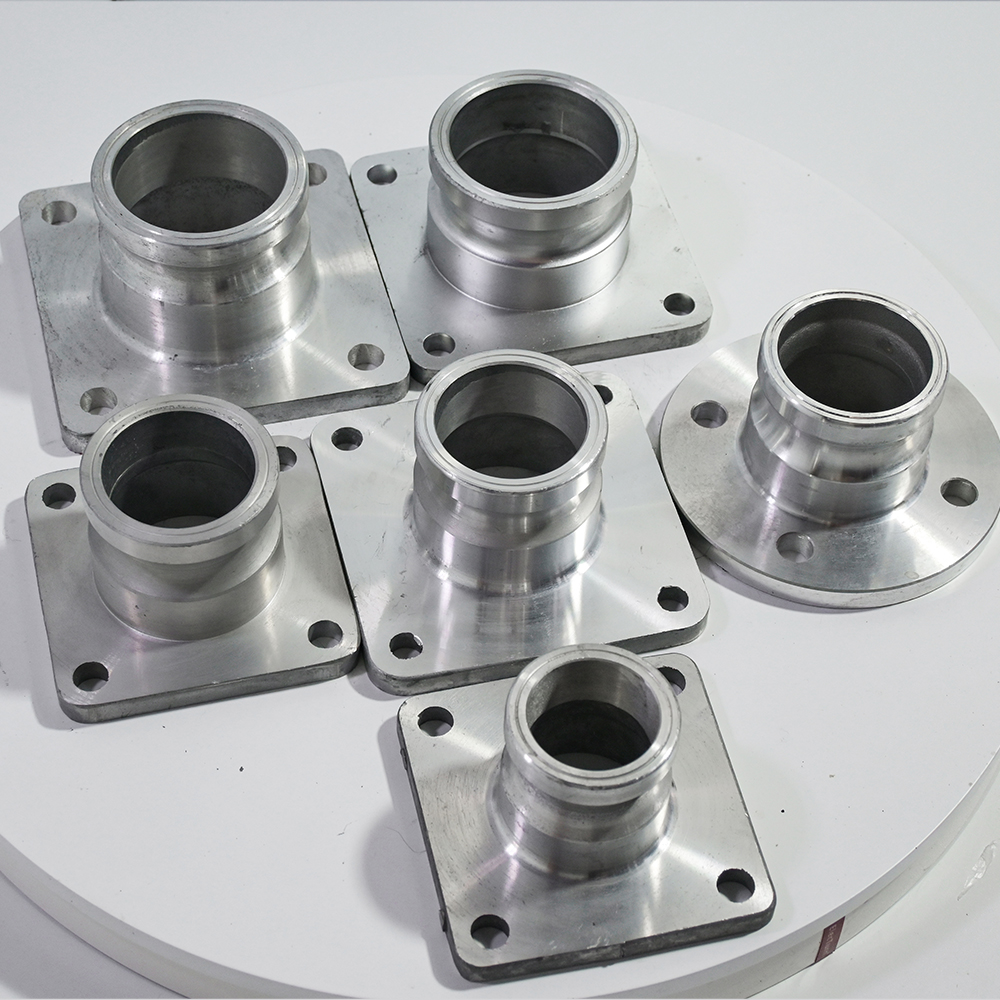

Aluminum alloy square flange quick connector Basic Parameters
| 型号 Model | 材质 Material | 颜色 Color | 通道内径 Inner bore diameter（mm） | 球阀内径 Ball valve inner diameter | 平行中心孔距 | 对角中心孔距 Diagonal center distance （mm） | 适用车型 Fit for models |
| 117*117*70 | Aluminum Alloy | Metallic | 52 | 43 | 90 | 122 | Oil Tank, Sprinkler, Sewage Suction |
| 136*136*75 | Aluminum Alloy | Metallic | 67 | 55 | 105 | 150 | Oil Tank, Sprinkler, Sewage Suction |
| 115.*115*75 | Aluminum Alloy | Metallic | 62 | 55 | 82 | 125 | Oil Tank, Sprinkler, Sewage Suction |
| 135*135*75 | Aluminum Alloy | Metallic | 78 | 70 | 105 | 150 | Oil Tank, Sprinkler, Sewage Suction |
| 146*146*82 | Aluminum Alloy | Metallic | 80 | 70 | 112 | 160 | Oil Tank, Sprinkler, Sewage Suction |

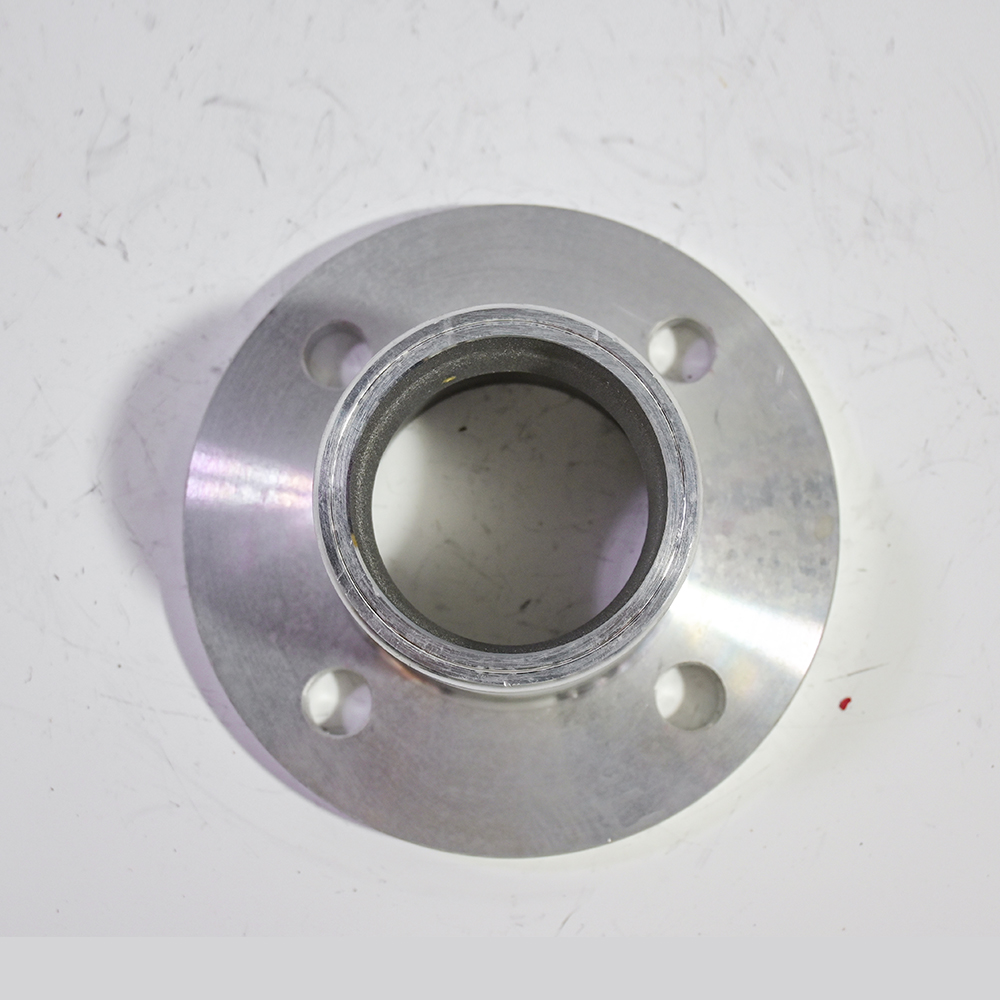

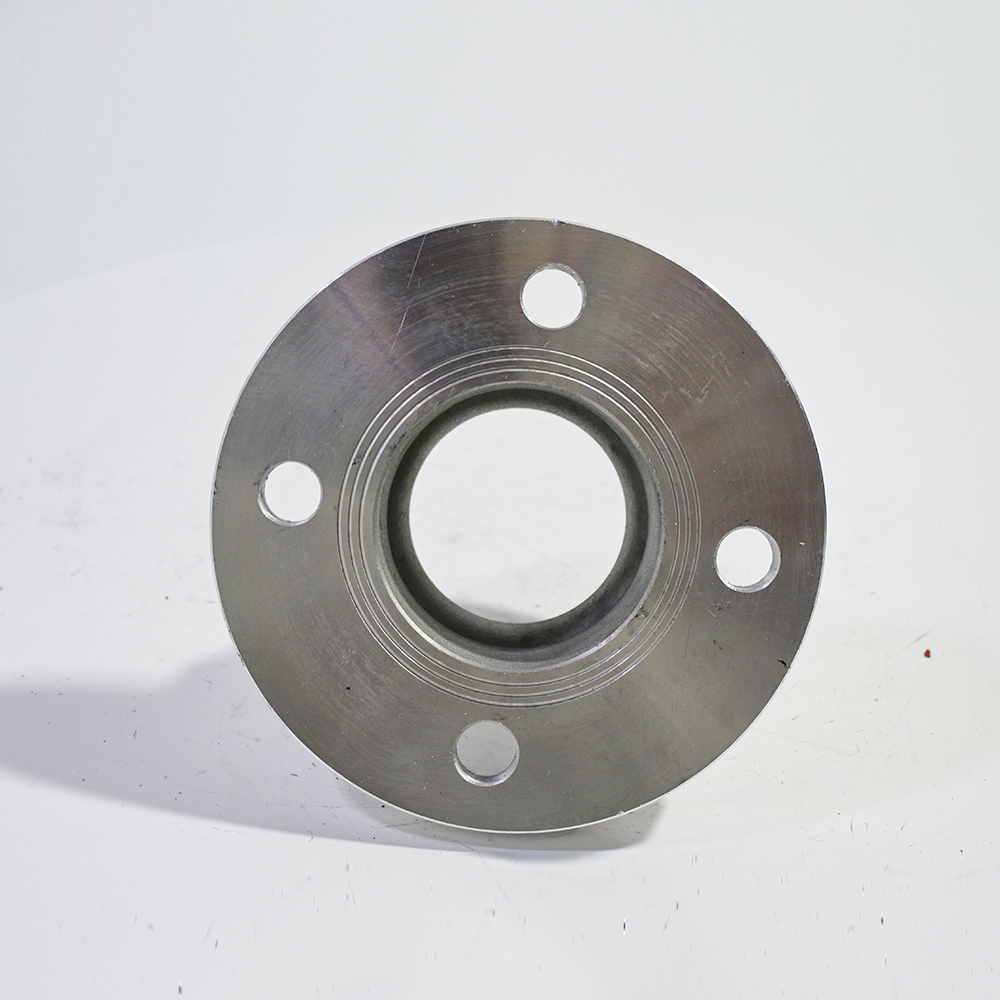

| Circular flange quick connector | Round quick-connect type. Its inner bore matches mainstream pipelines, and the quick-connect design balances great flow performance and easy installation. | ||||||
| 142*75 | Aluminum Alloy | Metallic | 64 | 58 | 73 | 73 | Oil Tank, Sprinkler, Sewage Suction |
1

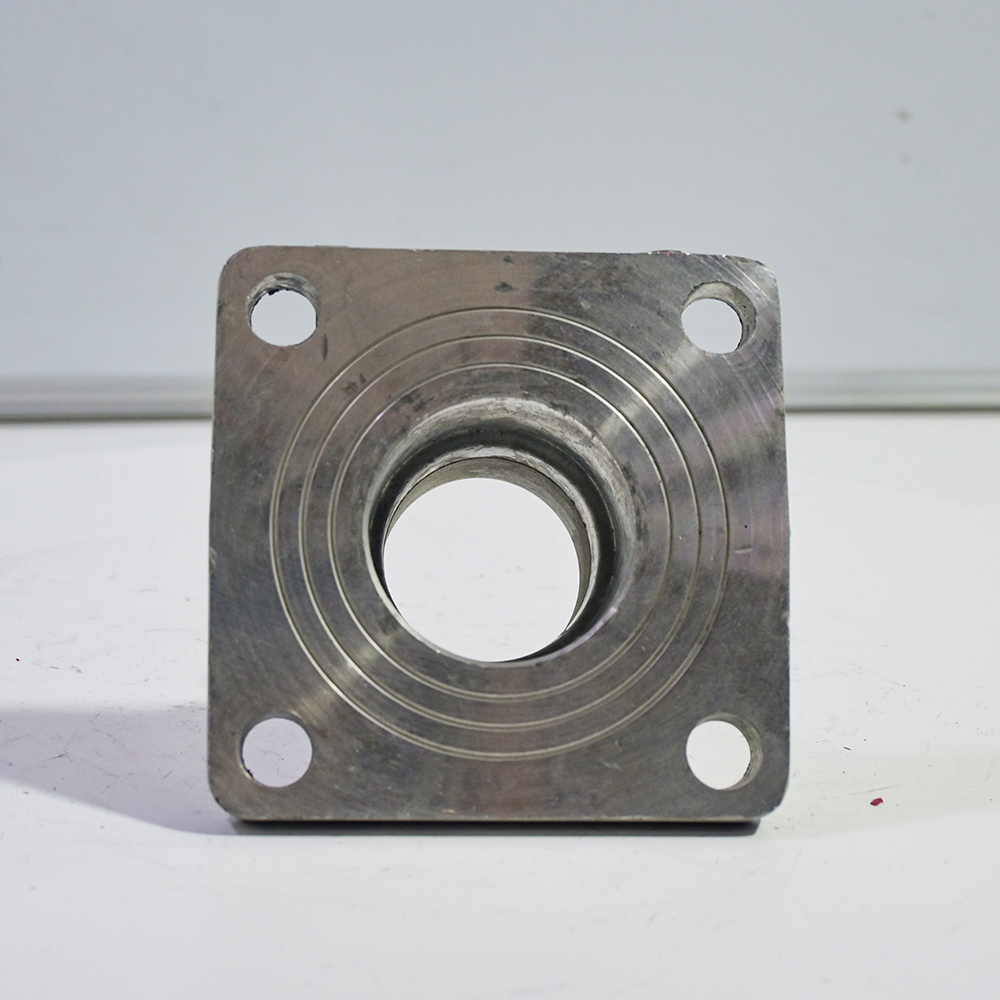

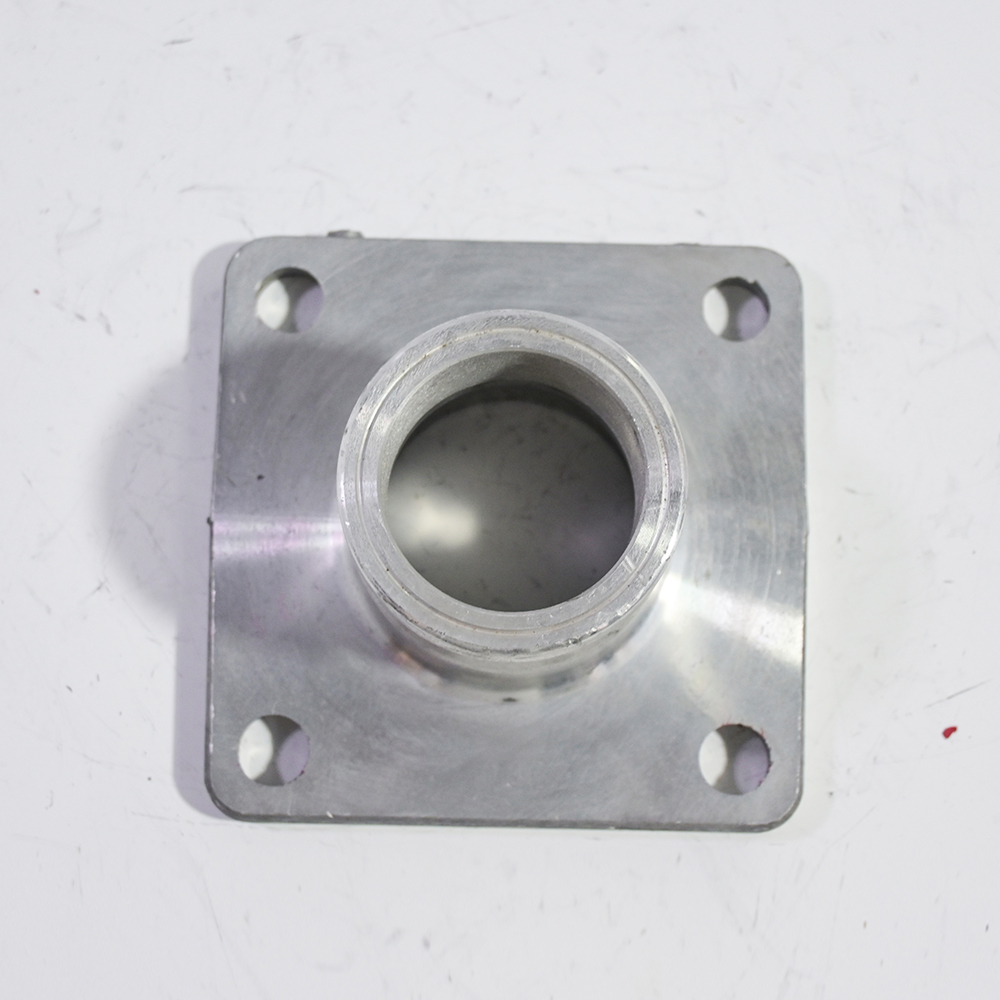

Square Flange 117×117×70
2
Square Flange 115×115×75
For medium flow applications, with an increased inner bore, it balances pressure and flow rate, making it suitable for medium-sized sewage suction trucks / oil tank trucks
3
Square Flange 136×136×75 / 135×135×75
For medium-to-large flow applications, the significantly enlarged inner bore delivers lower pressure drop at high flow rates, making it ideal for large oil tank trucks / sprinkler trucks
4
Square Flange 146×146×82
This mainstream model for high flow features an inner bore of 80mm, supporting high-volume fluid delivery with higher working efficiency.
2

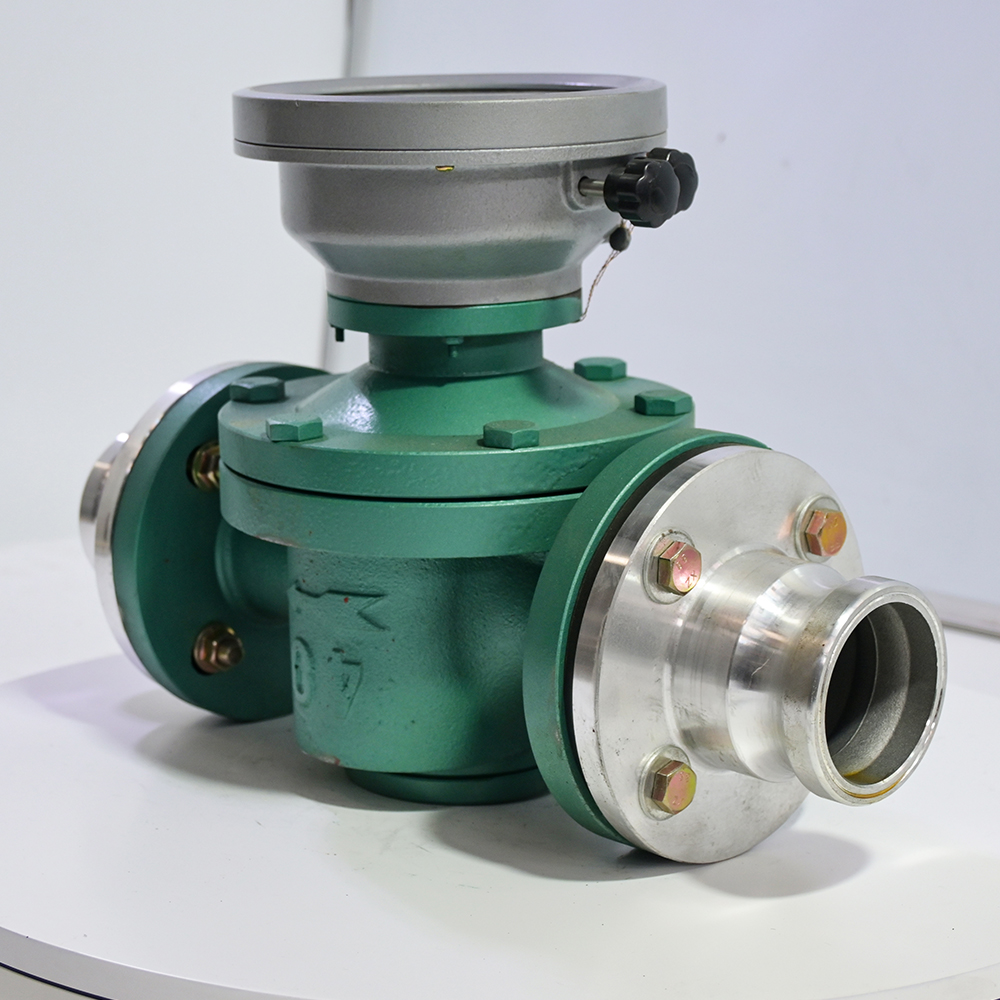

Aluminum alloy square flange quick connector of Filter screen tee
Aluminum alloy square flange quick connector
Aluminum alloy square flange quick connector
Aluminum alloy square flange quick connector
1
Aluminum alloy square flange Full-scenario Compatibility
With diversified specifications covering bore size, hole spacing and vehicle types, it meets mainstream demands and fits special vehicles of different tonnages and applications. Customers can select products easily without barriers.
2
Aluminum alloy square flange High Efficiency & Low Consumption Design
Made of lightweight aluminum alloy with well-matched inner bore, it combines high strength, excellent corrosion resistance and great delivery efficiency, cutting down long-term operating costs.
3
Aluminum alloy square flange Easy & Hassle-free Installation
Featured with standard hole spacing and dual installation options (flange / quick connect), it requires no extra processing and can be mounted directly on site to save working hours.
4
Aluminum alloy square flange High Reliability
Adopting raw-color aluminum alloy, it avoids coating peeling. The product is corrosion-resistant and impact-resistant, suitable for harsh outdoor working environments with low failure rate.
3
Aluminum alloy square flange quick connector Application Advantages
Aluminum alloy square flange What is Aluminum Alloy Flanged Ball Valve
An aluminum alloy flanged ball valve is a manual ball valve with an aluminum alloy body and flanged connection, fitted with a stainless steel ball core. It features light weight, excellent corrosion resistance, large flow capacity and quick on-off operation, and is widely used as a main pipeline shut-off valve for special vehicles such as oil tank trucks and sprinkler trucks.

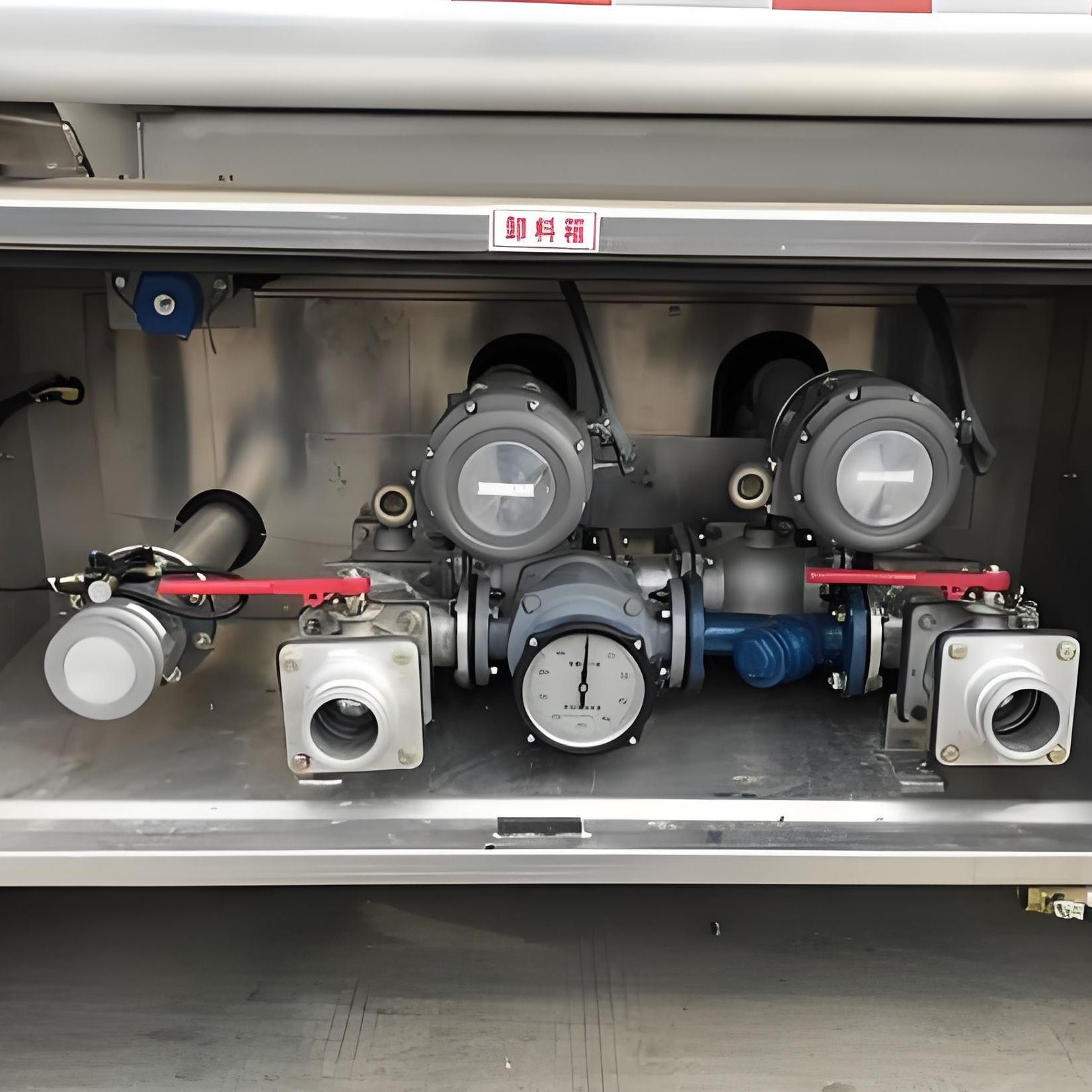

Aluminum alloy square flange Installation Positions (Typical for Oil Tank Trucks & Sprinkler Trucks)
Main Valve at Tank Outlet (Mandatory Installation)
Location: Between the discharge port at the bottom/side of the tank and the delivery pipeline
Function: Control the on-off of fluid across the whole vehicle; fully cut off flow during maintenance or parking to prevent leakage
Requirement: Position the handle towards the outer operating area and reserve sufficient space for rotation for easy operationPipeline Branch Control (Install as Required)
Location: Main pipeline to branch pipelines (e.g., water spray gun, gravity outlet, oil pump inlet)
Function: Independently control each branch circuit; maintenance on branches will not affect the main pipeline
Before & After Oil Pump (Oil Pump Pipeline)
Before pump: Between oil pump inlet and tank, to protect the pump and facilitate maintenance
After pump: Between oil pump outlet and pipeline, to avoid fluid backflow after shutdown
Drain & Vent Port (Auxiliary)Location: Lowest point of pipelines and tank drain outlet
Function: Discharge residual fluid inside the tank and pipelines to prevent freezing and sediment accumulation
Aluminum alloy square flange Prohibitions for Operation & Maintenance
No half-open operation: Keeping the valve half open for long will wear the sealing surface and cause internal leakage. Only use it in fully open or fully closed state.
No forced operation: Turn the handle 90° to the designated position. Do not pry or apply extra force to avoid valve stem breakage.
No mixed media application: Use oil service valves and water service valves separately to prevent cross contamination and seal deterioration.
Regular inspection: Check tightness of flange bolts and leakage at valve stem seals every 3 months. Clean the valve cavity once a year.
