Parameters of the electronic water cannon

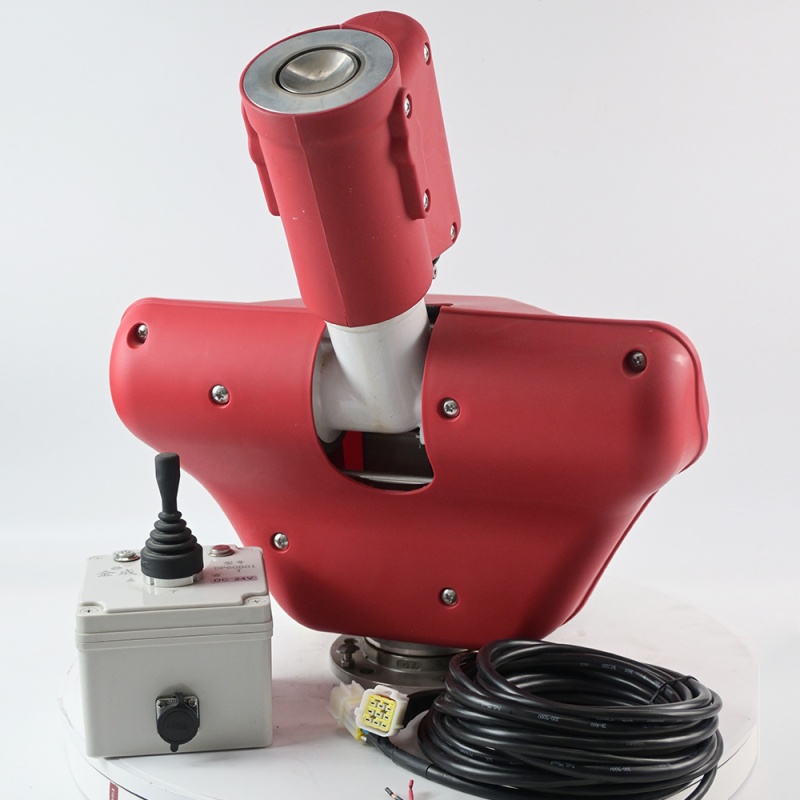

We supply two main models of electrically operated remote-controlled water cannon: DP60B01 and DD6050T. Each electronic water cannon is available with two matching control handles, respectively, and we display all optional handles for your selection to match your sprinkler perfectly.

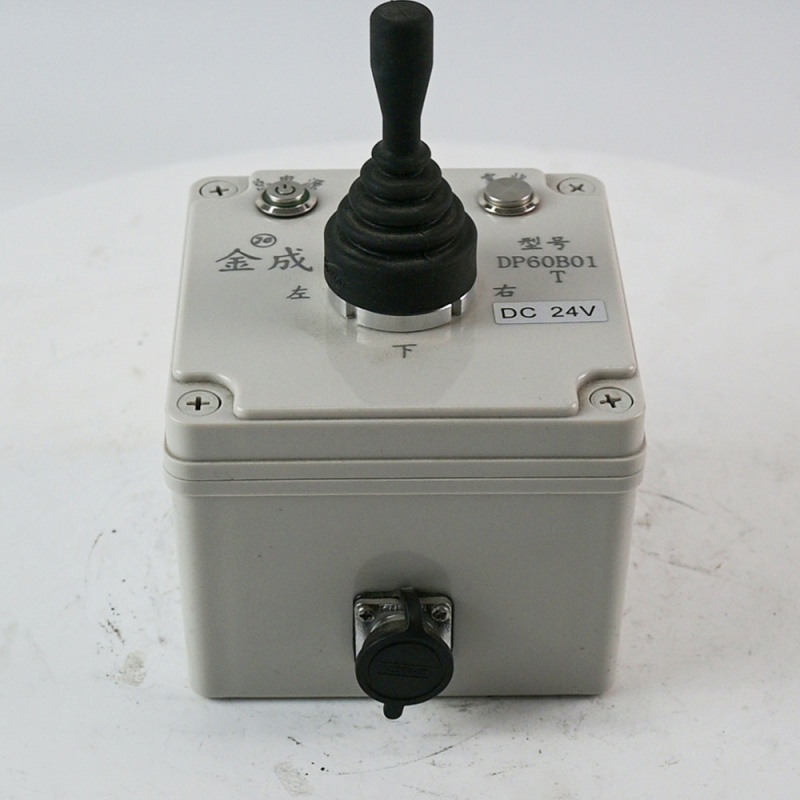

DP60B01 compatible
DP60B01 compatible
DD6050T compatible
DD6050T compatible
| Product name | front-mounted electronic water cannon |
| Material | Aluminum alloy, stainless steel |
| Color | White/Yellow/Red |
| Work pressure | 1.4MPa |
| Pressure resistance class | 2MPa |
| Flow range | 0-35㎡/h |
| Sealing method | Wear-resistant O-ring seals |
| Net weight | 17KG excluding accessories |
| Docking structure | Water cannon general-purpose round flange connection |
| Effective range | 30-50m |
2
Installation Position & Core Function of the Electronic Water Cannon
Installation Position

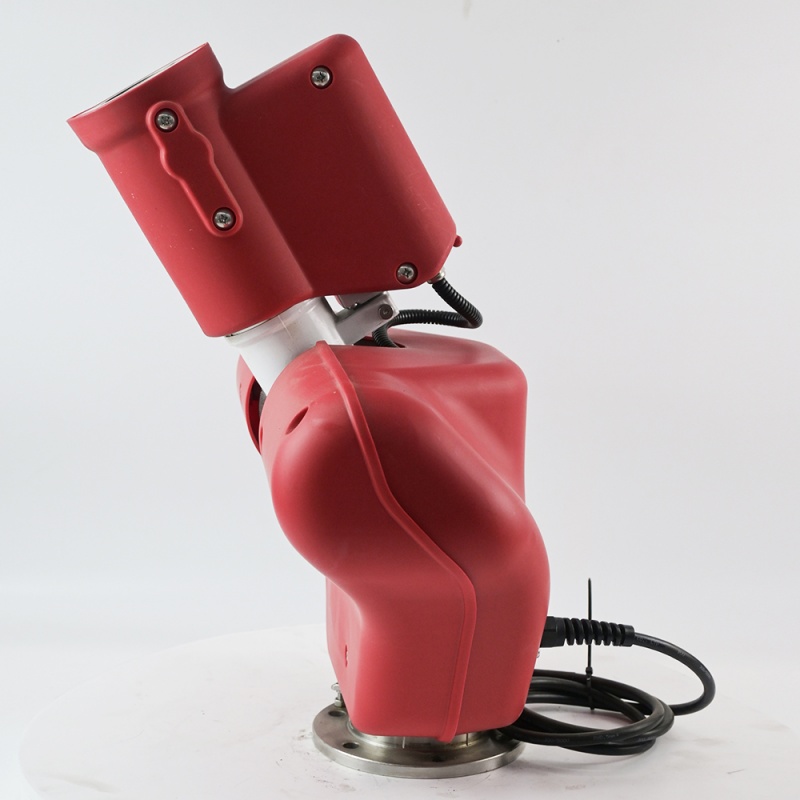

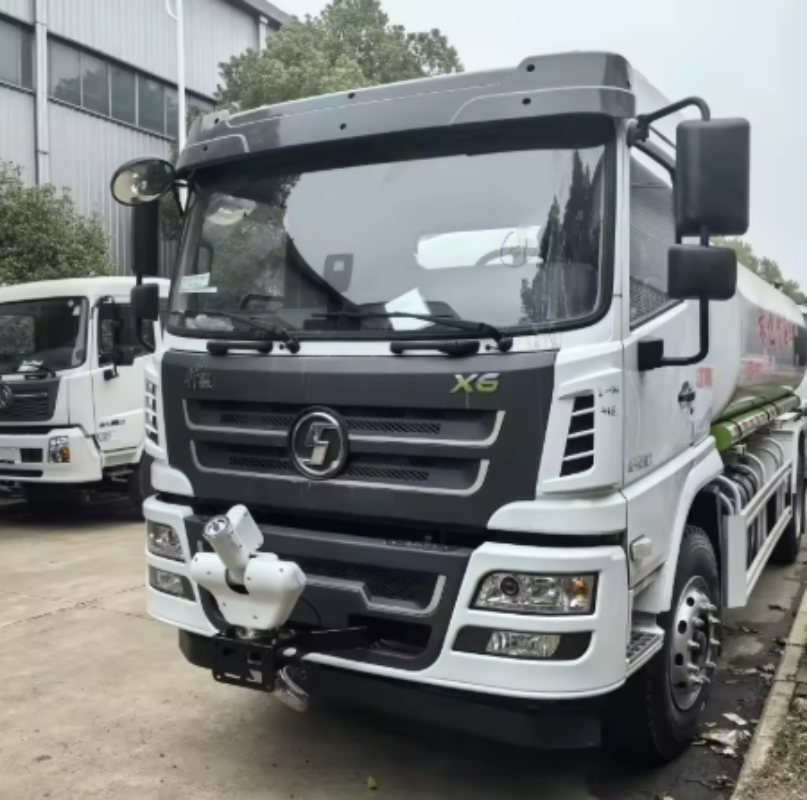

This series of electrically operated remote-controlled water cannon is specially developed for front mounting installation on the head of sprinkler truck, the most mainstream mounting layout for modern sanitation sprinkler. Compared with rear-mounted water cannon, front-installed electronic water cannon delivers a more intuitive operation sight for drivers when driving the sprinkler, greatly improving construction efficiency of road cleaning, greenbelt watering and emergency fire fighting.
Core Working Function
1. Direction adjustment: With a matched dedicated controller, the installed water cannon realizes 360° horizontal left-right swing and vertical up-down angle pitching; operators can manipulate the electrically operated remote-controlled water cannon via handheld wireless remote or cab joystick freely without getting off the sprinkler.
2. Dual spray mode switch: The electronic water cannon supports two mainstream water outlet types: shower spray for garden irrigation, pavement dust suppression, and lawn watering of sprinkler operation; long-distance jet spray for high-altitude cleaning, roadside fire emergency put-out, and remote road washing, covering diversified construction demands of global sprinkler end-users.
3
Product Parameter & Details Introduction

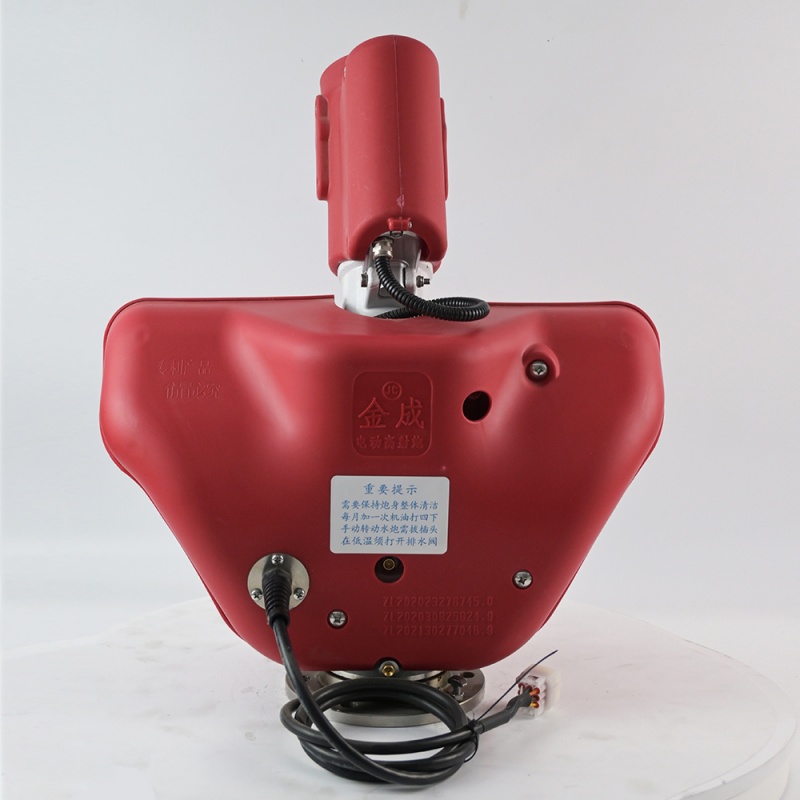

Our standard front-mounted electrically operated remote-controlled water cannon adopts an aluminum alloy main body plus a stainless steel flow channel; the core material combination enhances anti-rust and wear resistance of the electronic water cannon under long-term sprinkler liquid erosion.

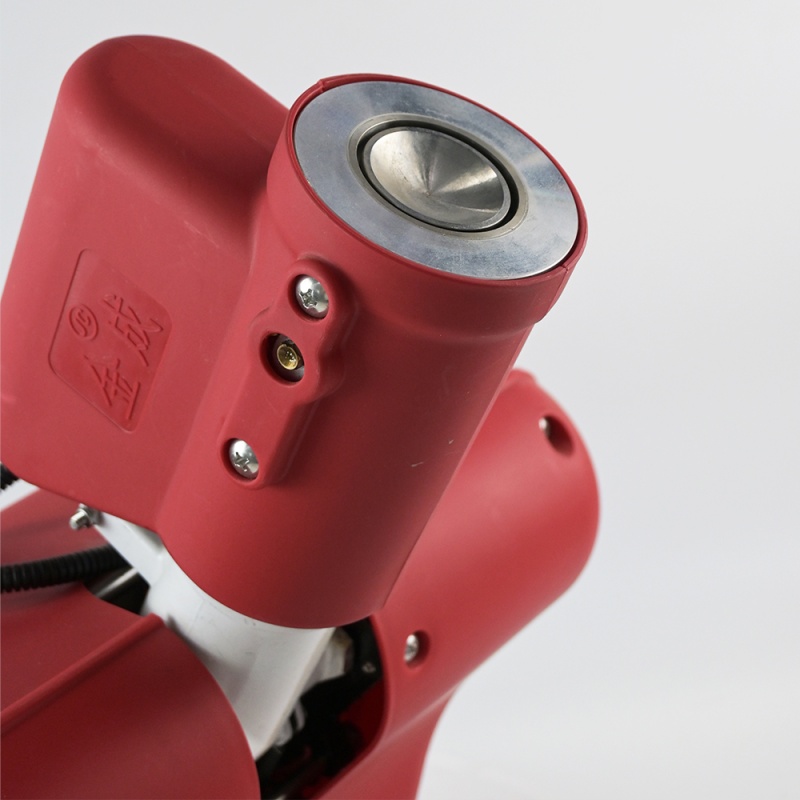

electronic water cannon
electronic water cannon
electronic water cannon
Working pressure is set as 1.4MPa with a maximum 2MPa pressure resistance grade; the whole water cannon passes a strict pressure leak test to avoid pipeline burst during high-pressure sprinkler work.
Sealing part of the water cannon uses wear-resistant O-ring seals, effectively preventing water leakage of the electronic water cannon under frequent mode switching and long-time continuous sprinkler operation.
Net weight of single electrically operated remote-controlled water cannon is 17 kg, excluding matched controllers and installation accessories. The lightweight design lowers the front load of the sprinkler chassis and reduces vehicle oil consumption.

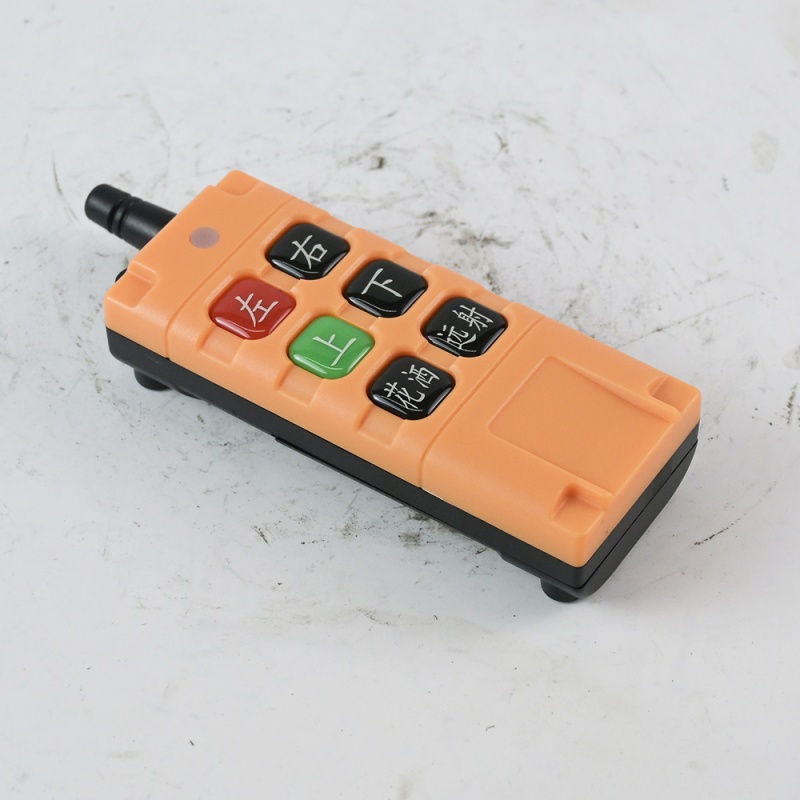

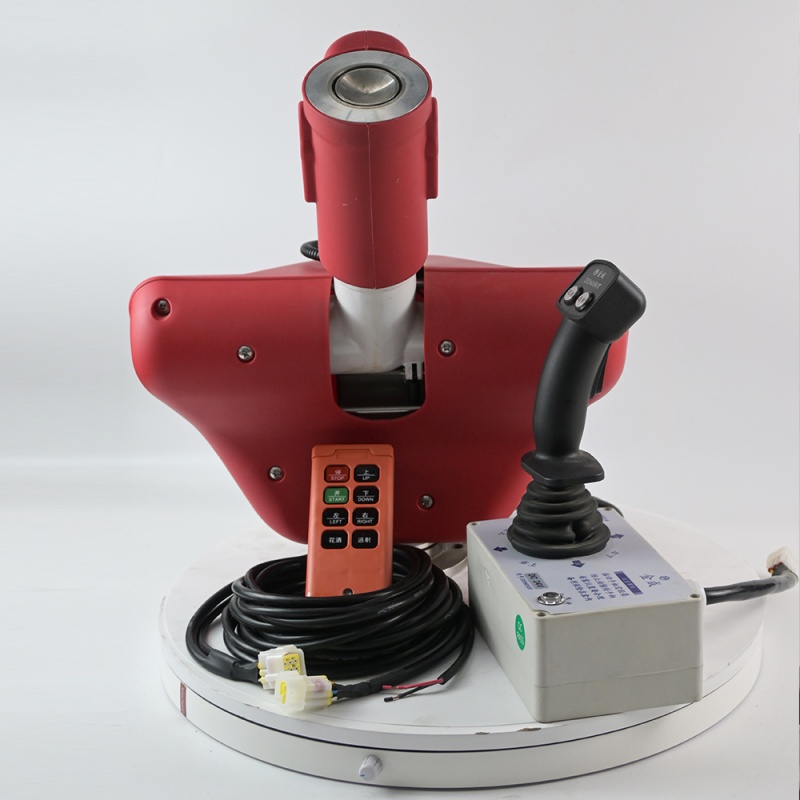

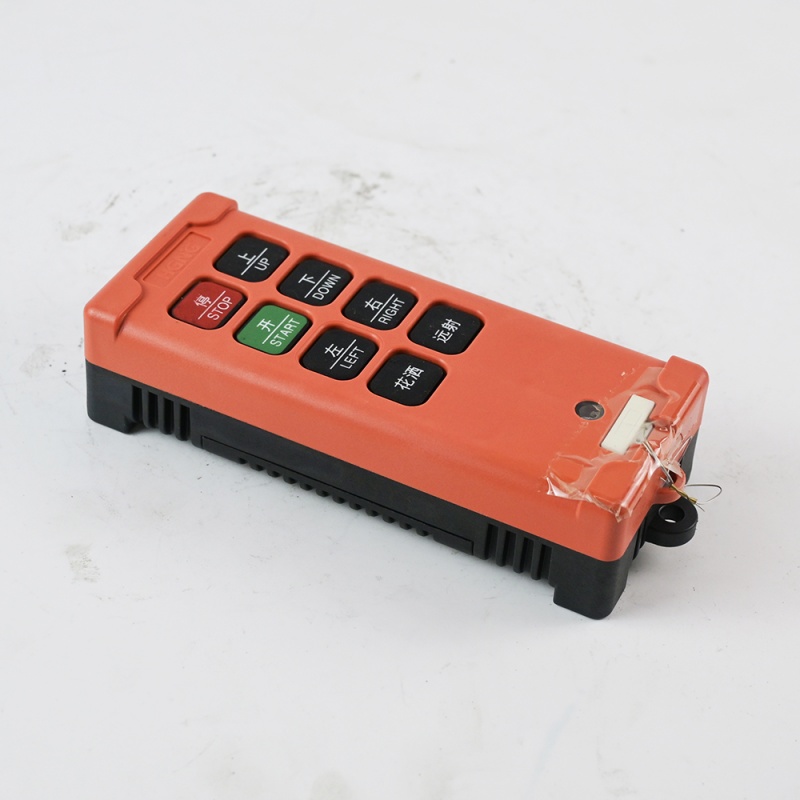

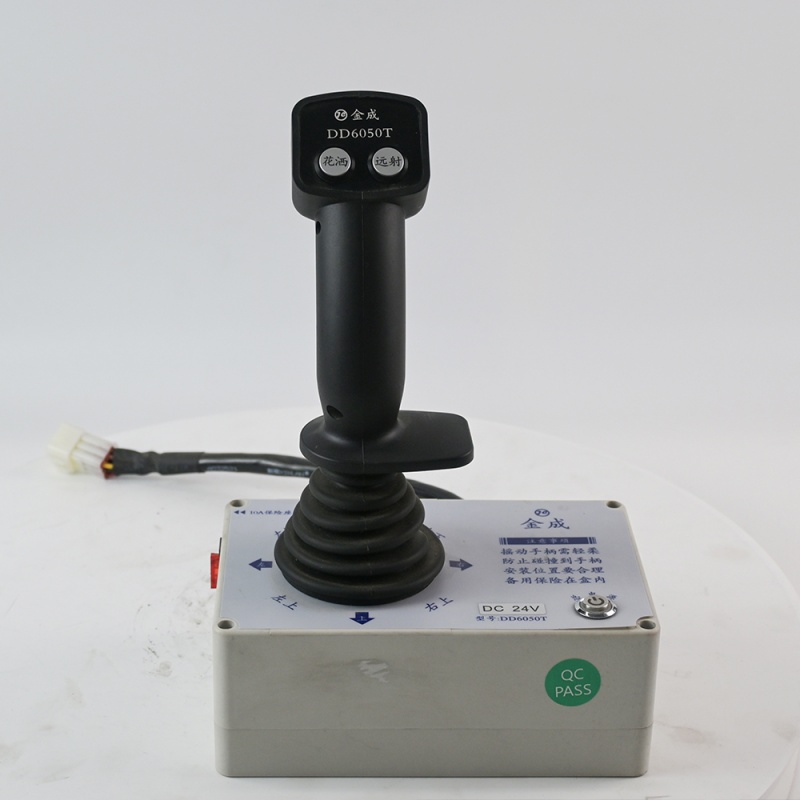

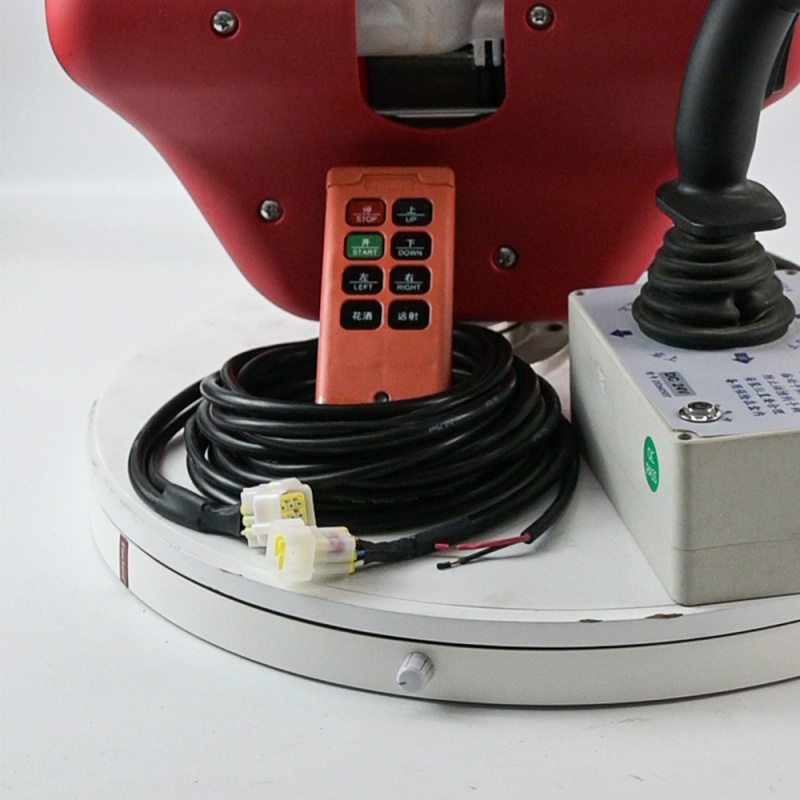

Supporting optional spare parts: Two types of exclusive controllers for the water cannon, including a 6-button handheld wireless remote controller and an in-cab mounted joystick controller, customers can choose a single remote control or dual-control configuration according to their own sprinkler refitting budget and operation habits.
The effective shooting range of standard electronic water cannon reaches 30~50 meters, satisfying the long-distance water delivery requirement of large-scale municipal sprinkler projects.
4
Core Advantages of Electrically Operated Remote-controlled Water Cannon
Flexible dual-control. Our electrically operated remote-controlled water cannon supports handheld remote and in-cab joystick controls. Operators adjust the electronic water cannon inside the sprinkler safely against harsh outdoor weather.
High compatibility. With a standard flange interface, this water cannon mounts easily on HOWO, Shacman, ISUZU and other mainstream sprinkler trucks without extra refitting.
Long service lifespan. Made of aluminum alloy and stainless steel, the electrically operated remote-controlled water cannon is anti-rust and anti-corrosion. Its premium seals outlast cast-iron water cannon and lower later sprinkler maintenance expenses.
Multi-purpose performance. Dual spray patterns of the electronic water cannon fit road washing, green irrigation, and emergency fire control, boosting the sprinkler’s overall usage efficiency.
Customizable options: We tailor flow rate, range and controller styles for the electronic water cannon to match clients’ unique sprinkler configuration needs.
5
About Us
HAIGONG (HUBEI) IMPORT AND EXPORT CO.,LTD. is a professional special truck supplier focusing on various customized sanitation & engineering vehicles. We stick to the brand philosophy To Be The Engine Of The Truck Business, with mature global after-sales service network covering Nigeria, Kenya, Tanzania, Kyrgyzstan and Philippines. Supported by global spare parts center, local technical service stations & 24/7 online service, we deliver reliable full-cycle service for worldwide clients. Choose Haigong, Choose Success.

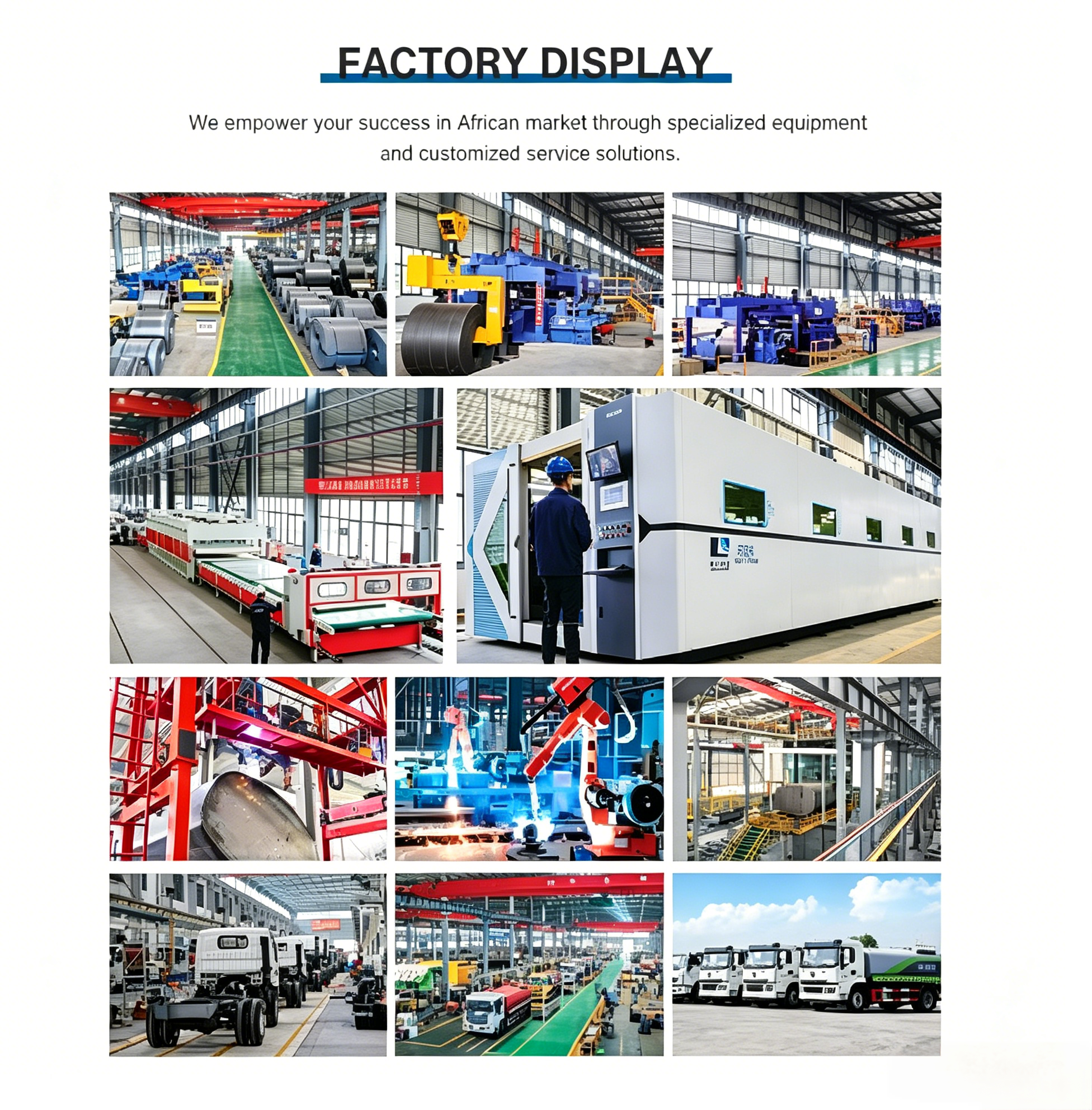

Our equipped modern production workshop owns advanced automated cutting, welding and assembling equipment. Strict standardized manufacturing process guarantees stable product quality for all sprinkler, fire and special trucks, enabling us to provide tailored vehicle solutions for global markets especially Africa.
Our special trucks have been exported to over 20+ countries across Africa, Europe, Southeast Asia, North & South America. Long-term cooperation with global distributors and frequent on-site client inspection witnesses our stable market recognition and trustworthy product competitiveness.
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance.
EXW, FOB, CFR, CIF, DAF, DDU.
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order.
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us!
Yes, we have 100% test before delivery.
We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and technical support to quide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
