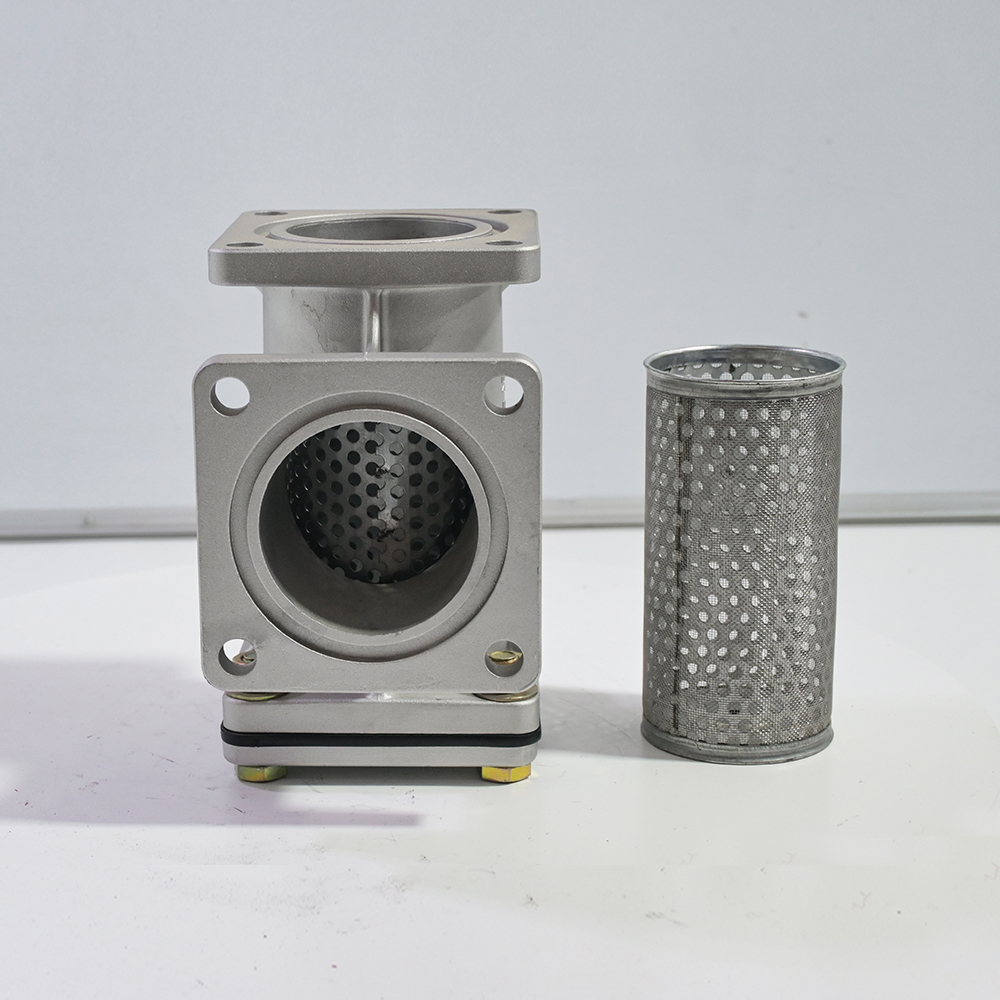

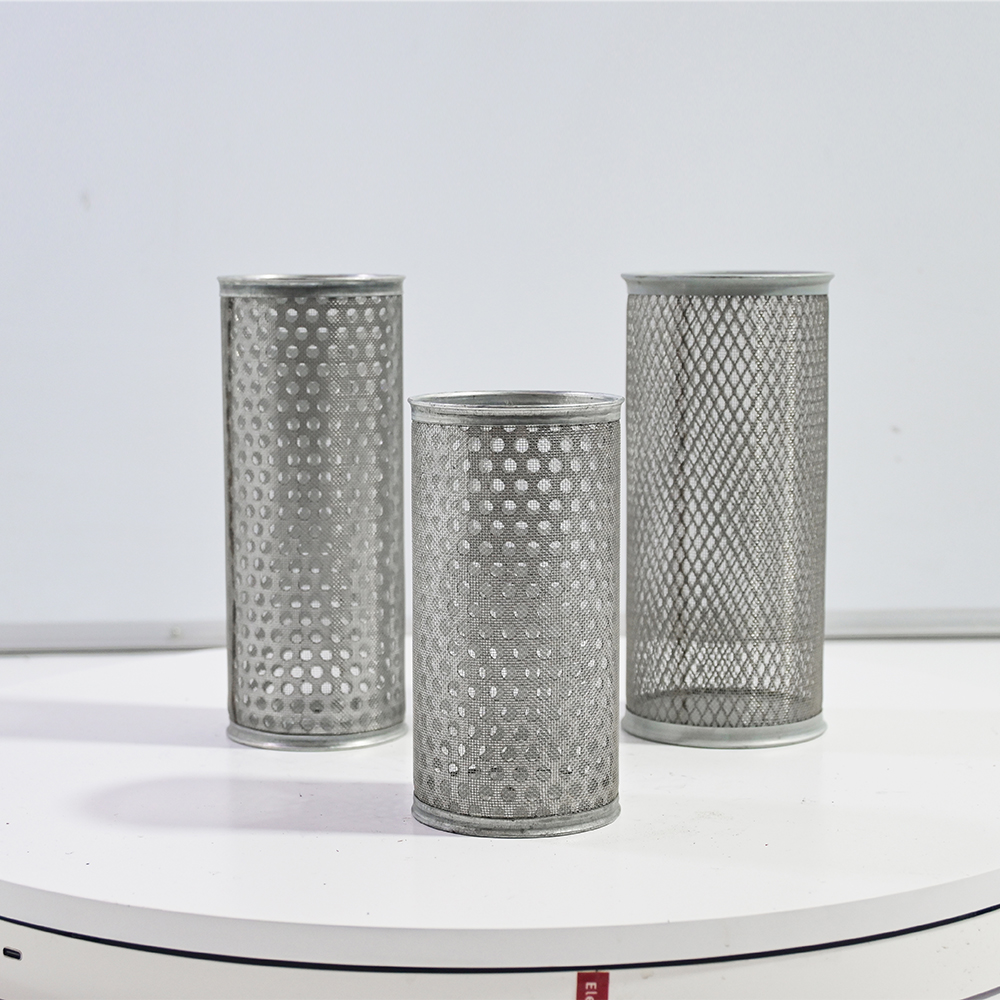

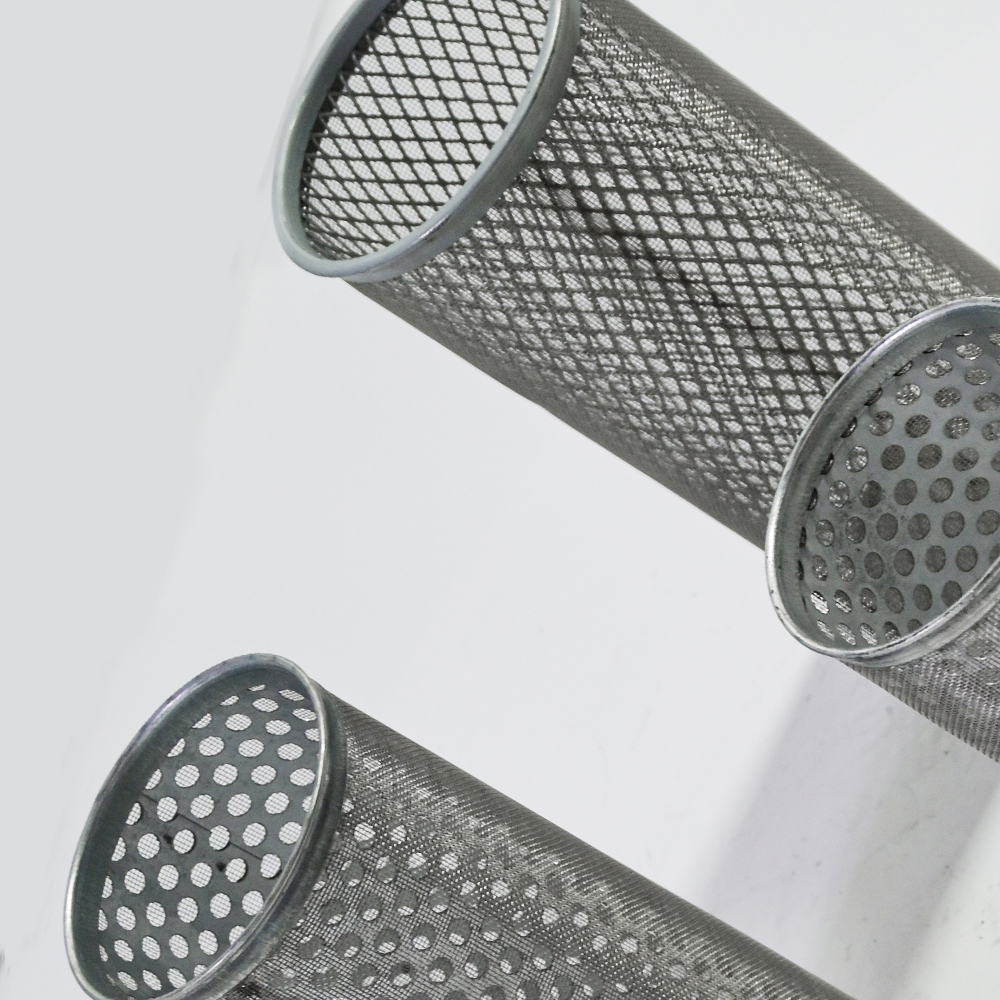

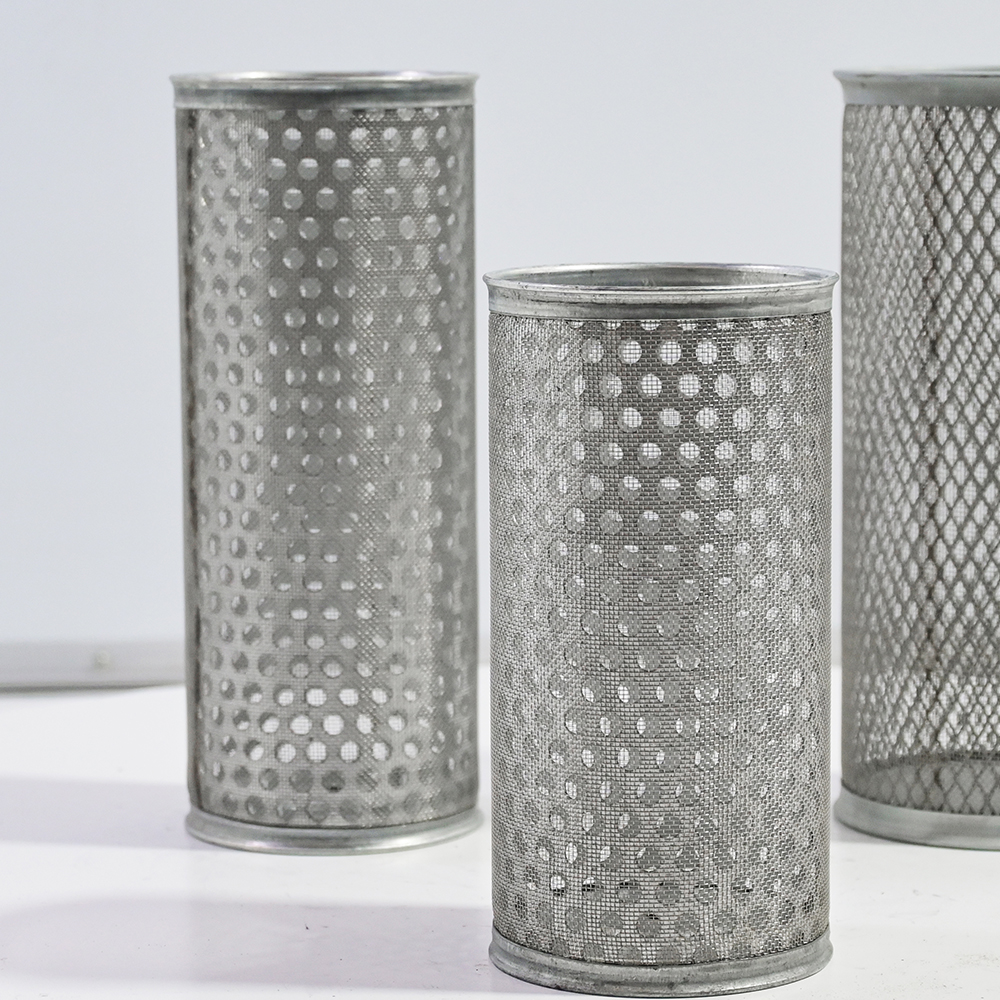

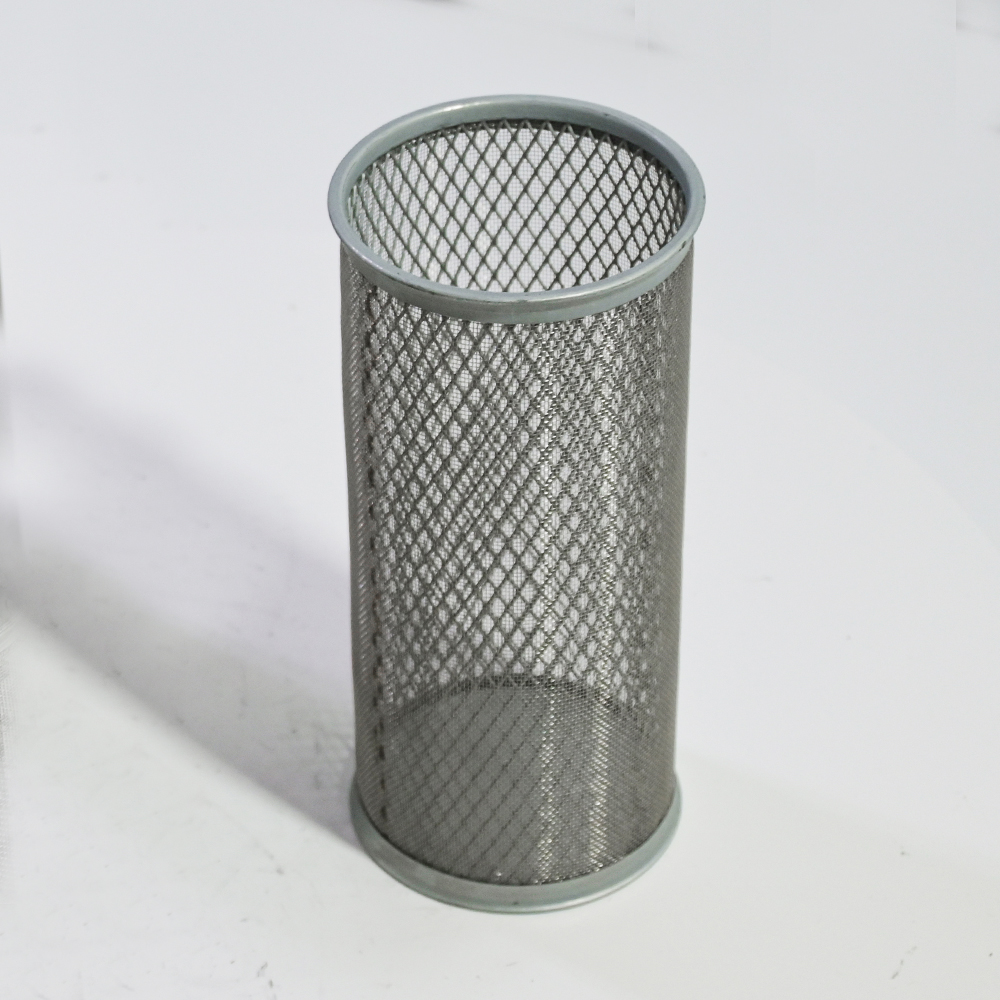

Real Shot Display of Filter screen tee
Filter Tee Filter Screen
Filter Tee Filter Screen
Filter Tee Filter Screen
1
Filter Tee Filter Screen Superior Filtering Capacity
Built-in dense filter screen blocks gravel, weeds and debris, effectively protecting pump impeller from jamming and extending pump service life.
2
Filter Tee Filter Screen Integrated Tee Design
All-in-one T-shaped structure cuts extra pipe fittings, reduces leakage points and speeds up pipeline installation.
3
Filter Tee Filter Screen Durable Aluminum Alloy Construction
Die-cast aluminum body features lightweight, corrosion resistance and high pressure resistance, suitable for harsh working conditions of sanitation trucks.
4
Filter Tee Filter Screen Convenient Daily Maintenance
2
Installation Position of Filter Tee Filter Screen
Main installation Filter Tee Filter Screen

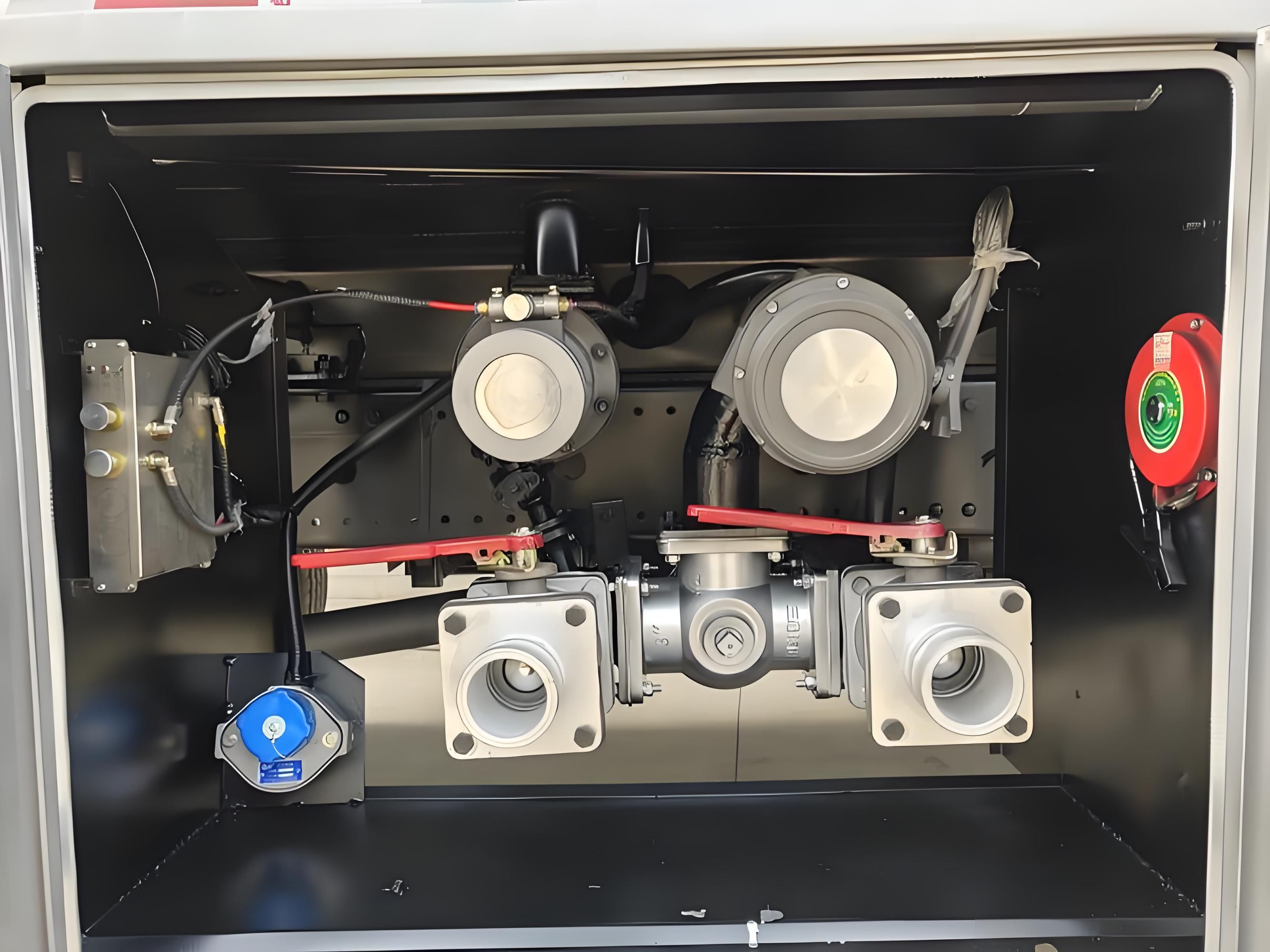

It is normally mounted at the front of the sprinkler pump suction port, on the connecting pipeline between the tank outlet pipe and pump inlet. Located at the 90° elbow of the water absorption pipeline inside the vehicle frame under the water tank and upstream of the pump inlet valve, it serves as a mandatory pass for fluid flow. Its built-in filter screen traps silt, weeds and debris in the water, blocking hard contaminants from entering the pump chamber to prevent jamming or damage to the pump impeller.
Optional installation Filter Tee Filter Screen
Alternative installation positions are flexible. Besides the standard mounting spot, the filter can be installed on branch pipelines of the outlet tee at the bottom of the sprinkler tank or the joint between external suction rubber hose and original vehicle pipeline. Suitable for sewage suction trucks as well, it can be fitted on the water and oil inlet pipelines ahead of the vacuum pump. Users may select installation mode according to actual pipeline layout to meet refitting demands of various sanitation vehicles.
Mounting requiremen Filter Tee Filter Screen

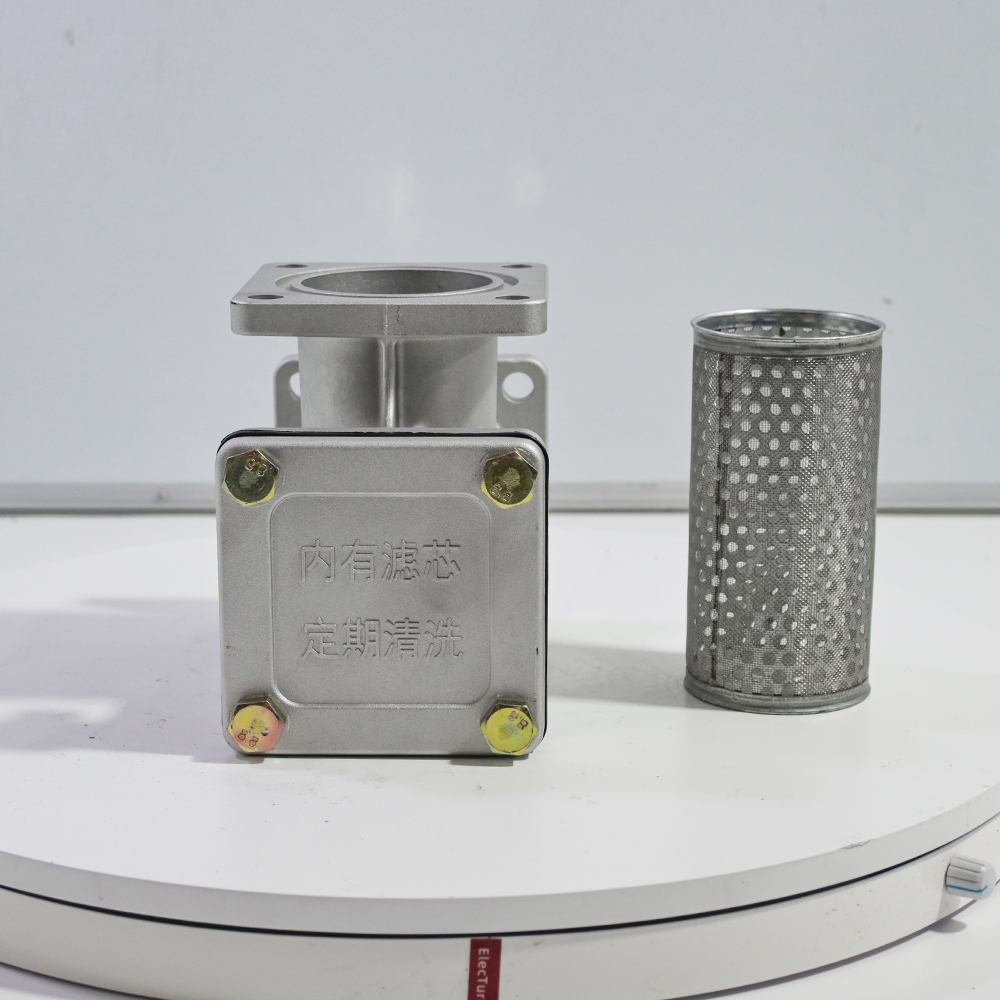

During installation, ensure the T-type maintenance port faces downward and the fitting is horizontally fixed at pipeline bends. This mounting method enables easy later maintenance without removing the entire pipeline. The built-in filter screen can be taken out directly by unscrewing the maintenance port to clean silt, weeds and other impurities. It effectively cuts maintenance hours and pipeline disassembly loss, ideal for routine upkeep of water sprinkler and sewage suction trucks.
3
Filter Tee Filter Screen Basic Parameters
| 型号 Model | 材质 Material | 颜色 Color | 长 Length | 高 Height | 适用车型 Fit for models |
| DN50 | Aluminum Alloy | Metallic | 115 | 115 | Water sprinkling & Sewage suction |
| DN80 | Aluminum Alloy | Metallic | 134 | 134 | Water sprinkling & Sewage suction |
1
Filter Tee Filter Screen Precise dimension desig
DN50 (115×115mm) & DN80 (134×134mm) feature symmetrical size, perfectly matching original pipeline hole of sprinkler & sewage suction trucks, no extra pipe cutting needed during refitting.
2
Filter Tee Filter Screen Premium aluminum alloy
Die-cast aluminum body in metallic color is lightweight, pressure-resistant and anti-corrosion, resisting rust under muddy & sewage working conditions for sanitation vehicles.
3
Filter Tee Filter Screen Dual-size full coverage
DN50 & DN80 cover mainstream pipeline calibers of most medium/small sanitation trucks, convenient for distributors’ bulk stocking and diverse vehicle matching.
4
Filter Tee Filter Screen Customized for sanitation equipment
We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance.
EXW, FOB, CFR, CIF, DAF, DDU.
Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order.
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us!
Yes, we have 100% test before delivery.
We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and technical support to quide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
